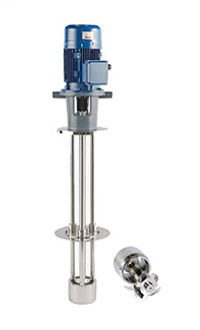

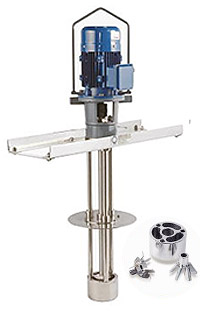

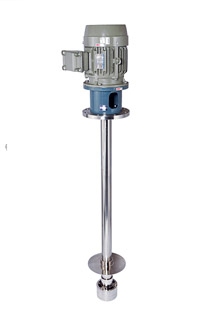

HM-H Flange installed type	HM-H(V) Vacuum pressure type	HM-H(B) Bridge installed type

Features
● Rapidly circulating convection forced strong cutting and impact.
● Stator and rotor of emulsifier with high closed precision, strong suction, homogenize high viscosity material effectively.
● Emulsifying, homogenizing, cutting, crushing, mixing  can be made synchronously within short time.
● Accessories are standardized, it made by CNC precise machining.
● Assemble standardized, easy to maintenance.

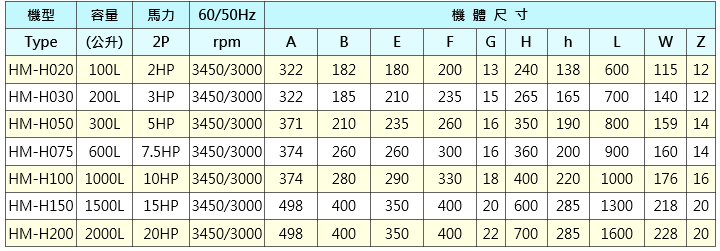

Specification

※ The reference capacity shown on above chart is based on water as medium. The actual selected model will be decided by raw material viscosity and character.

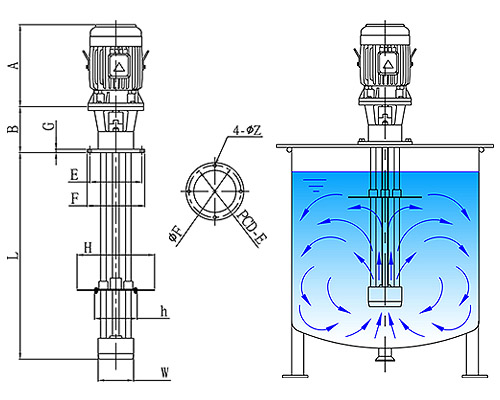

※ Mechanical dimension (L) is based on standard product, for meet the best performance, actual dimension will be designed as customer's tank.
